Big Block Chevy 360cc/133cc

SKU 00004
$460.00
Choose an option
Please choose
In stock
1
Product Details

This item is not sold as a pair, this is a single cylinder head.

Please select a quantity of 2 on the following page to order a pair of cylinder heads


FLOTEK Recommended Setup:
Header – Based on Chassis-2 1/8”
Rocker Arms – Isky Roller Rockers 204-96 1.75:1 or Equivalent
Intake Manifold – Victor JR or Super Victor

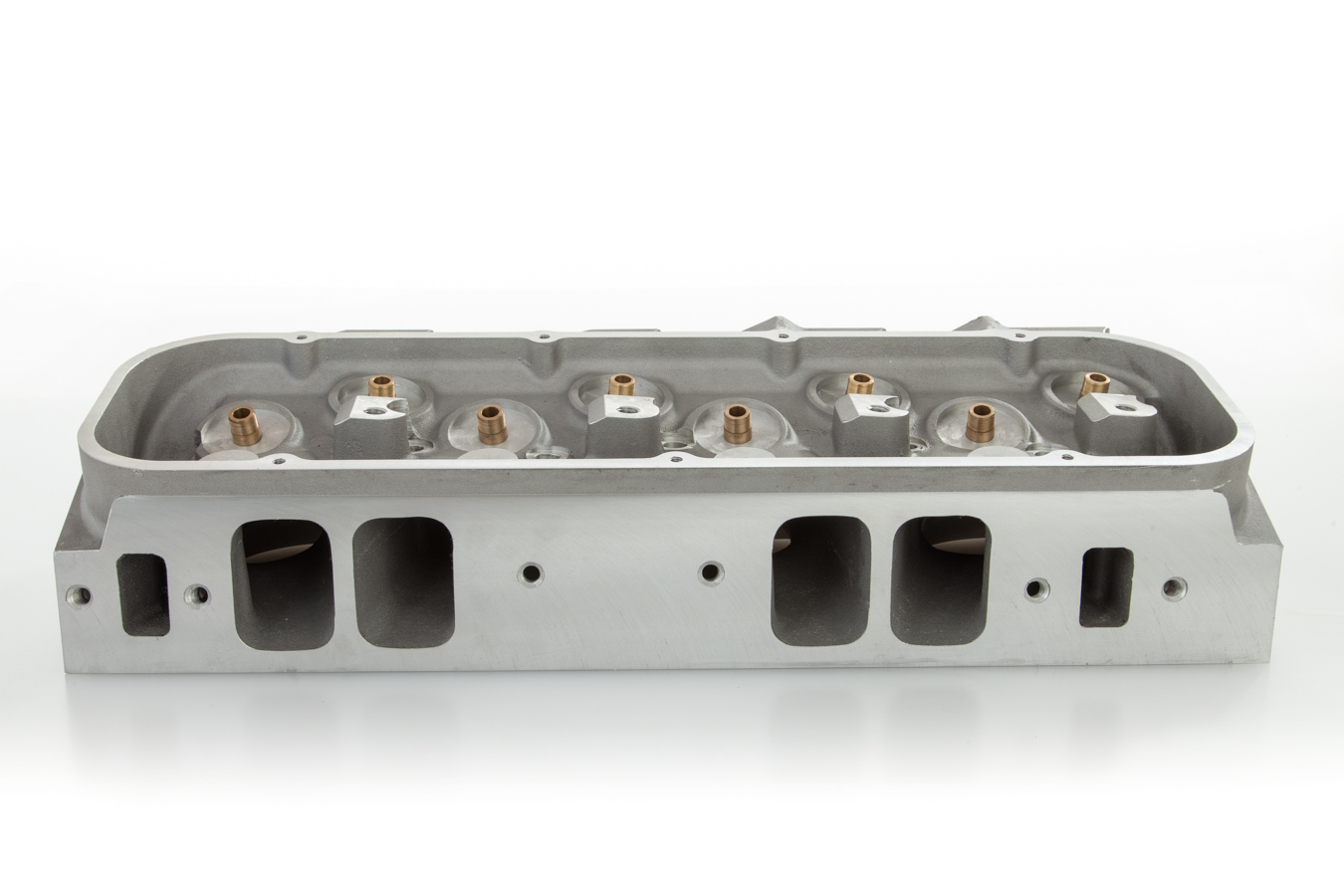

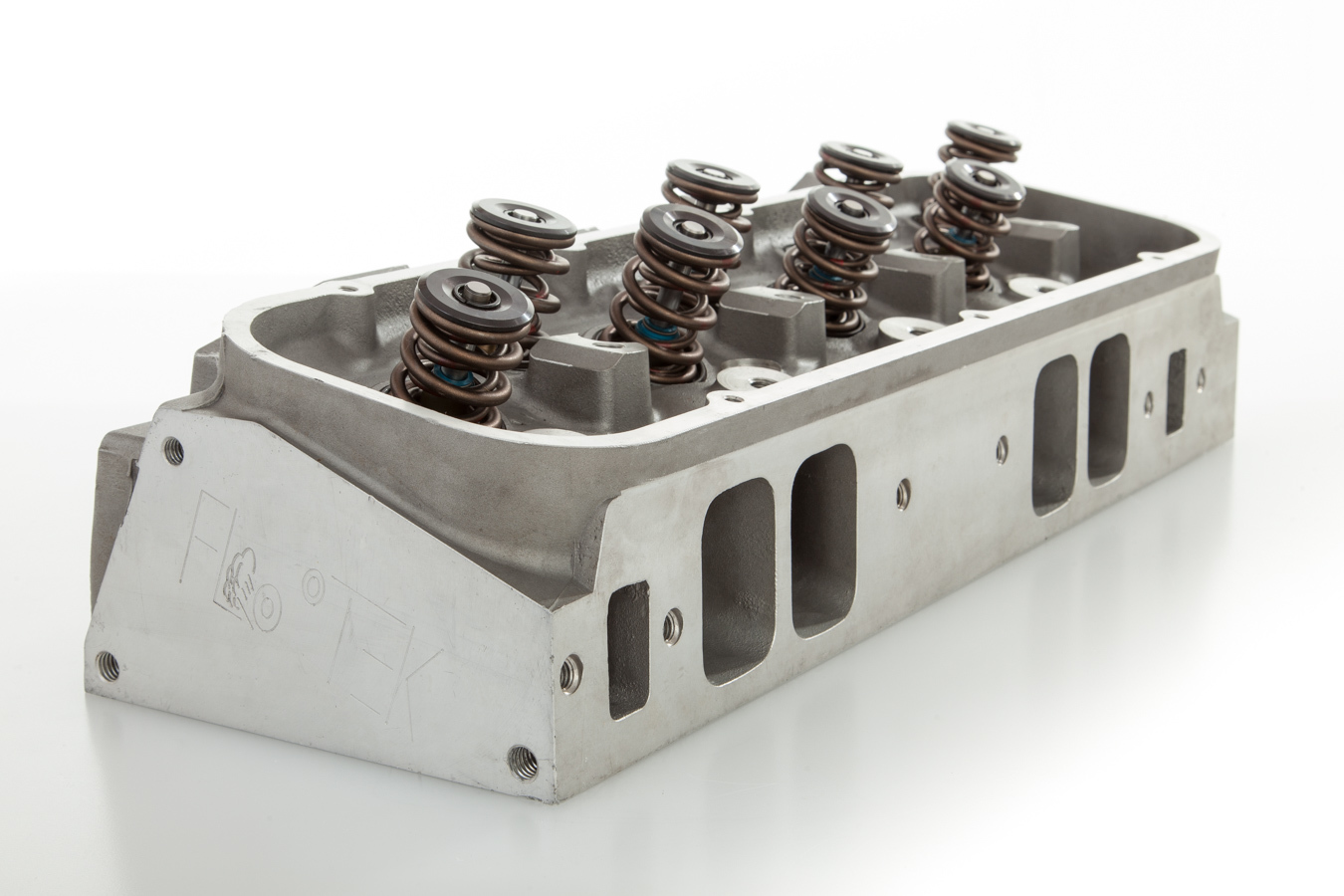

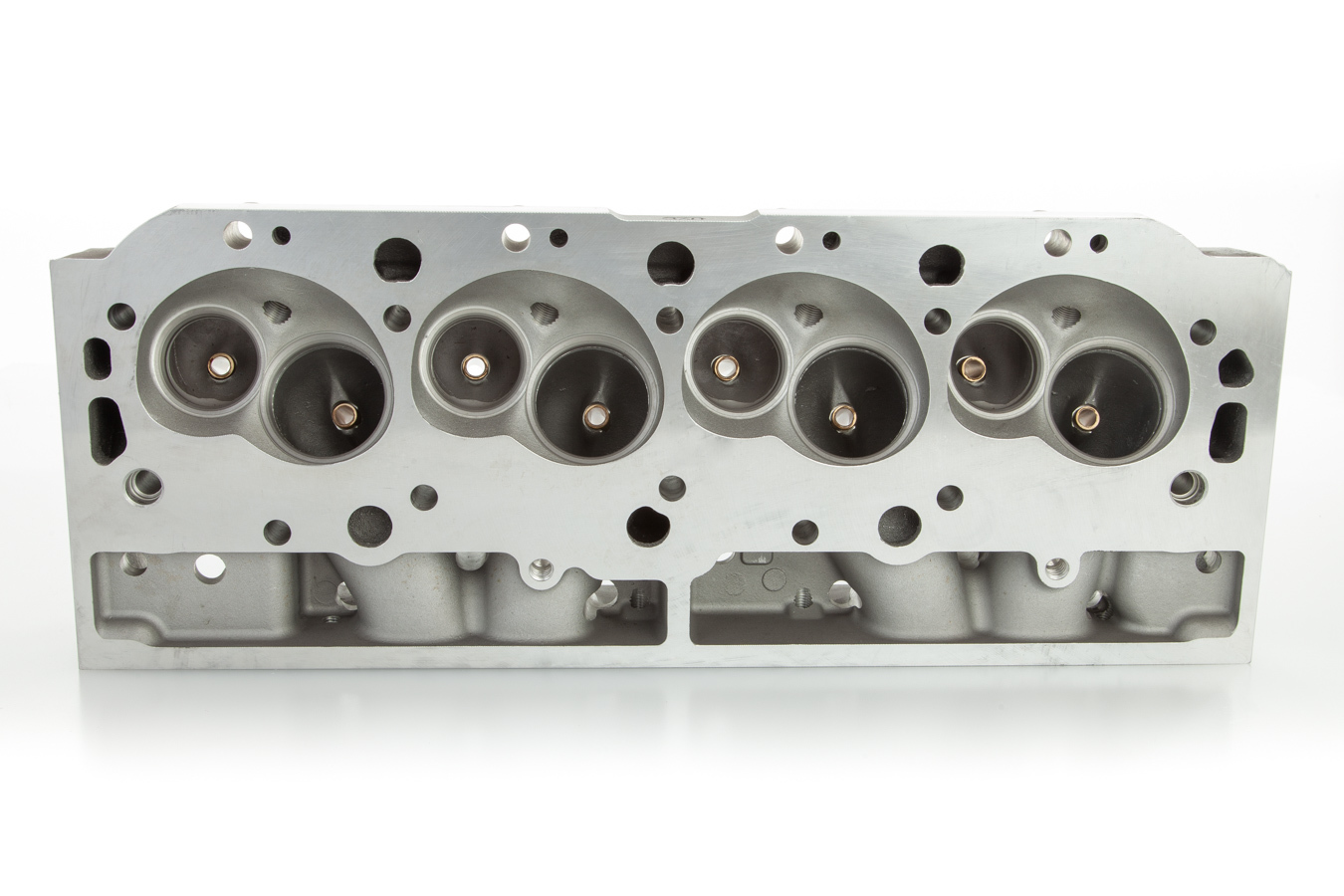

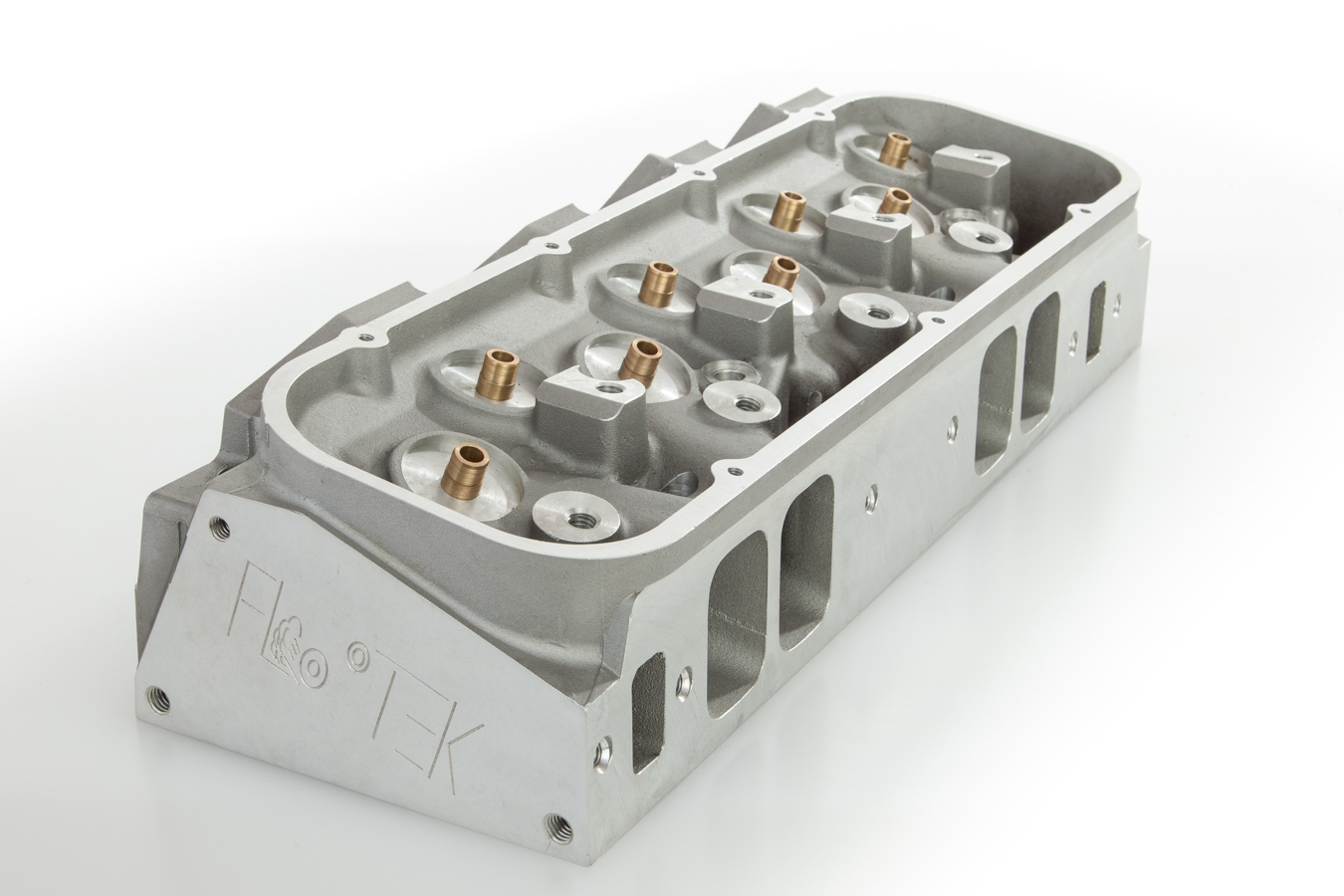

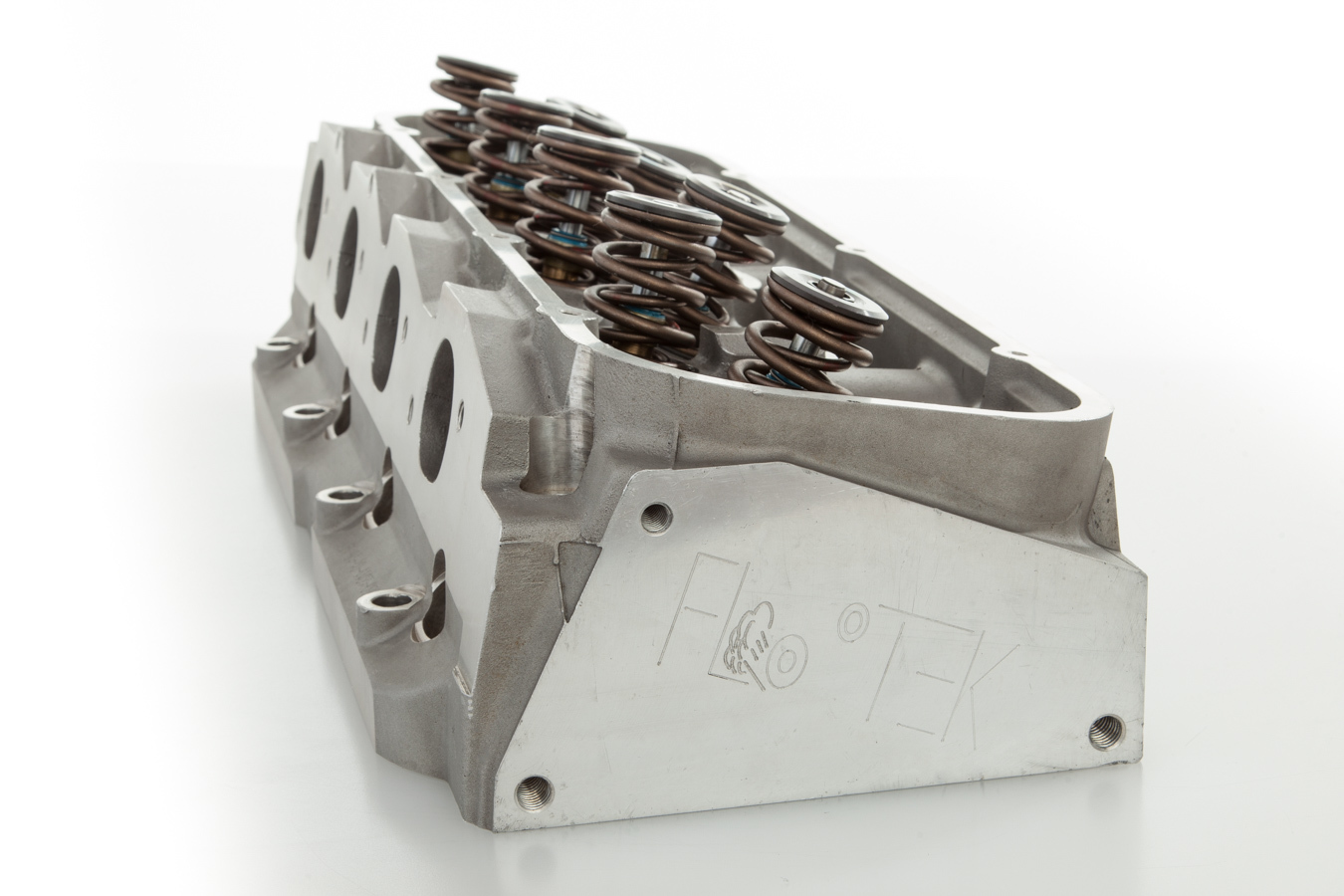

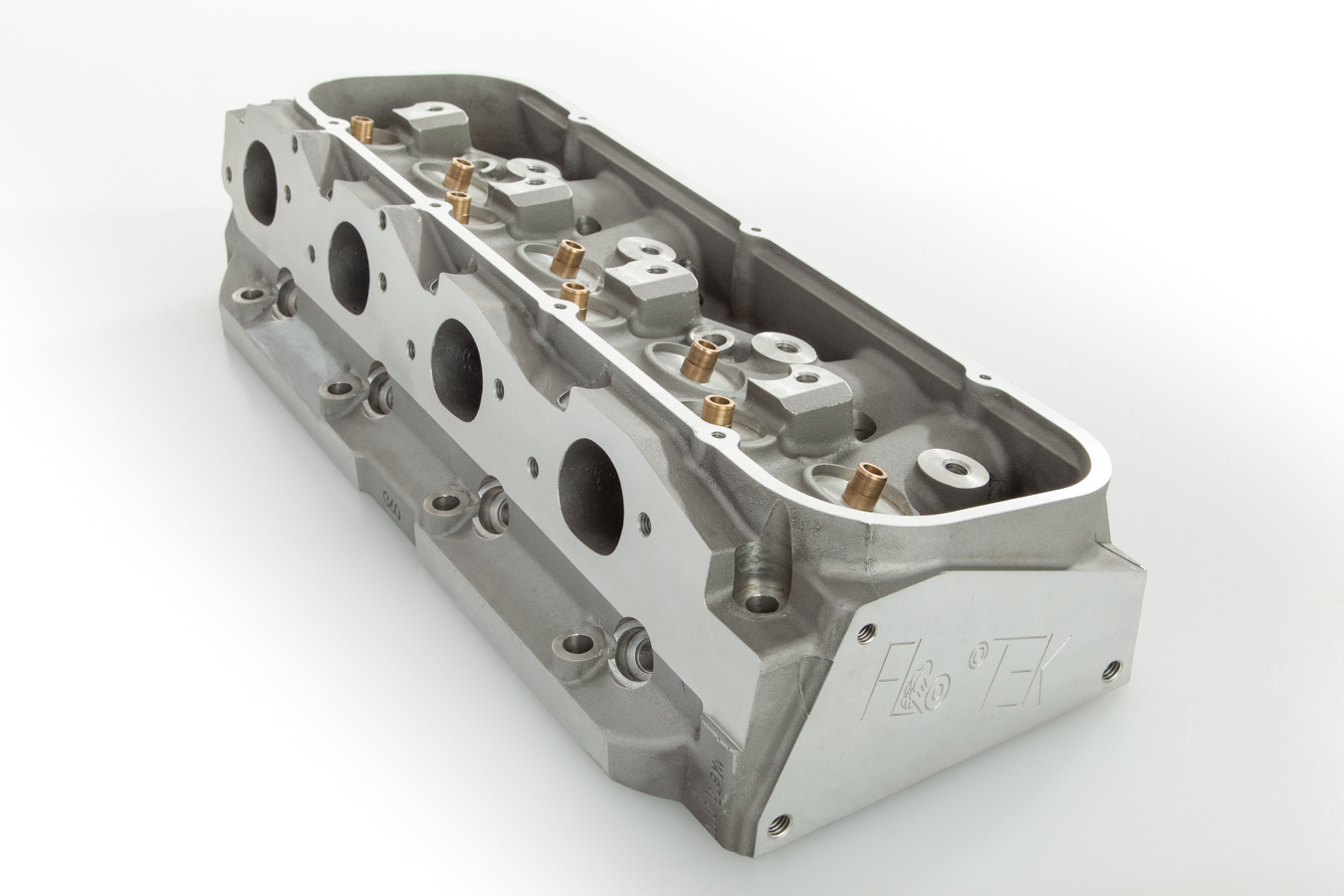

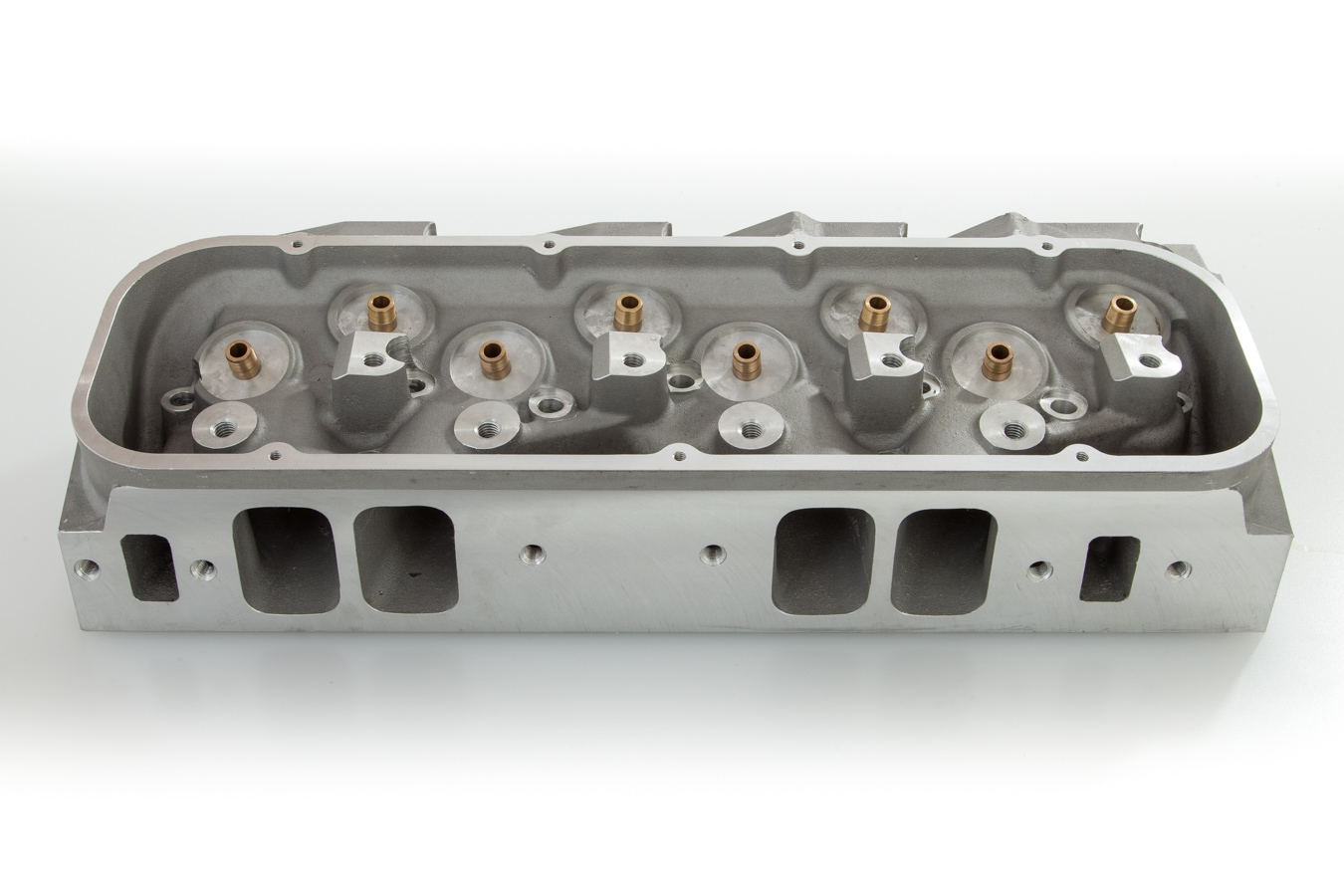

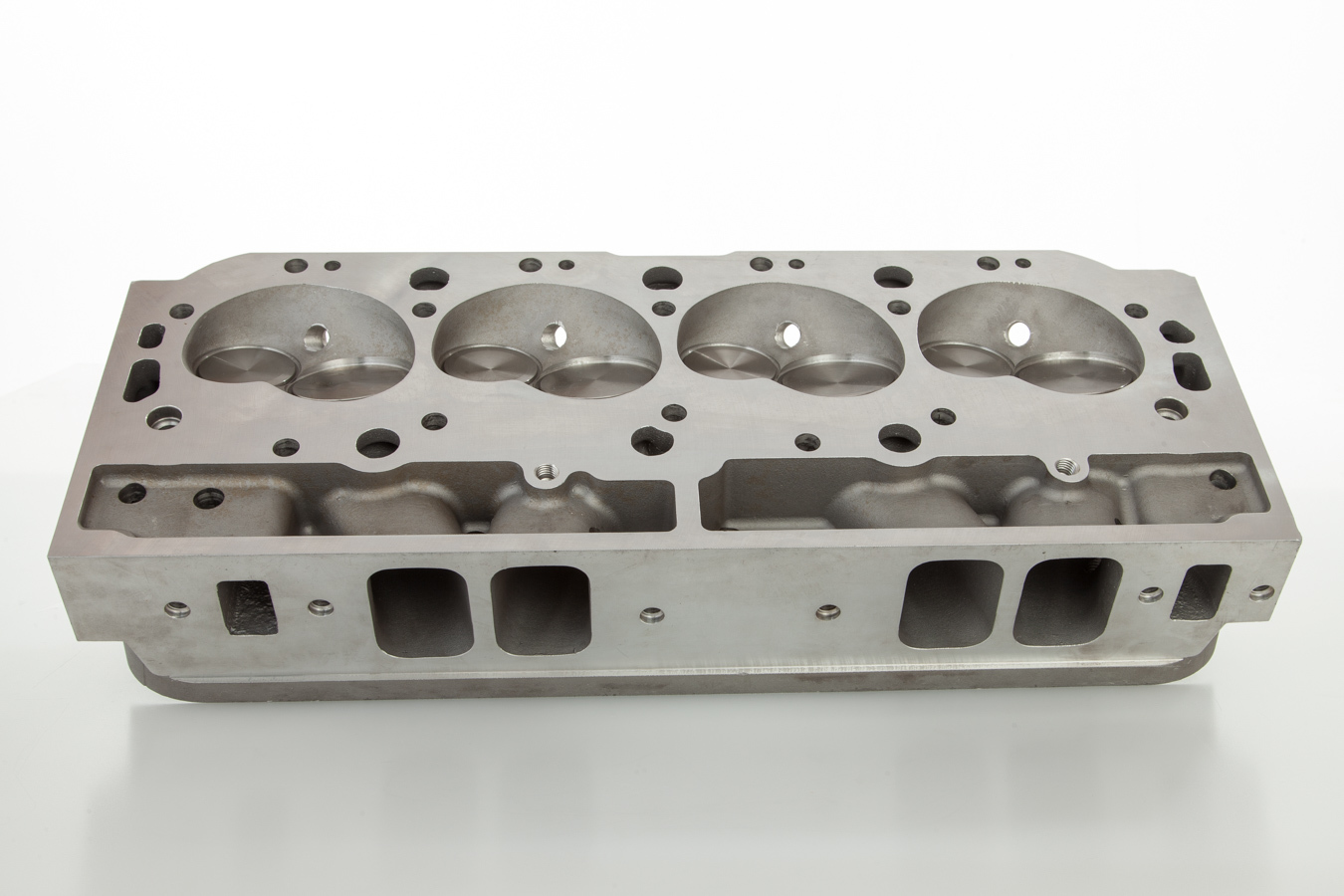

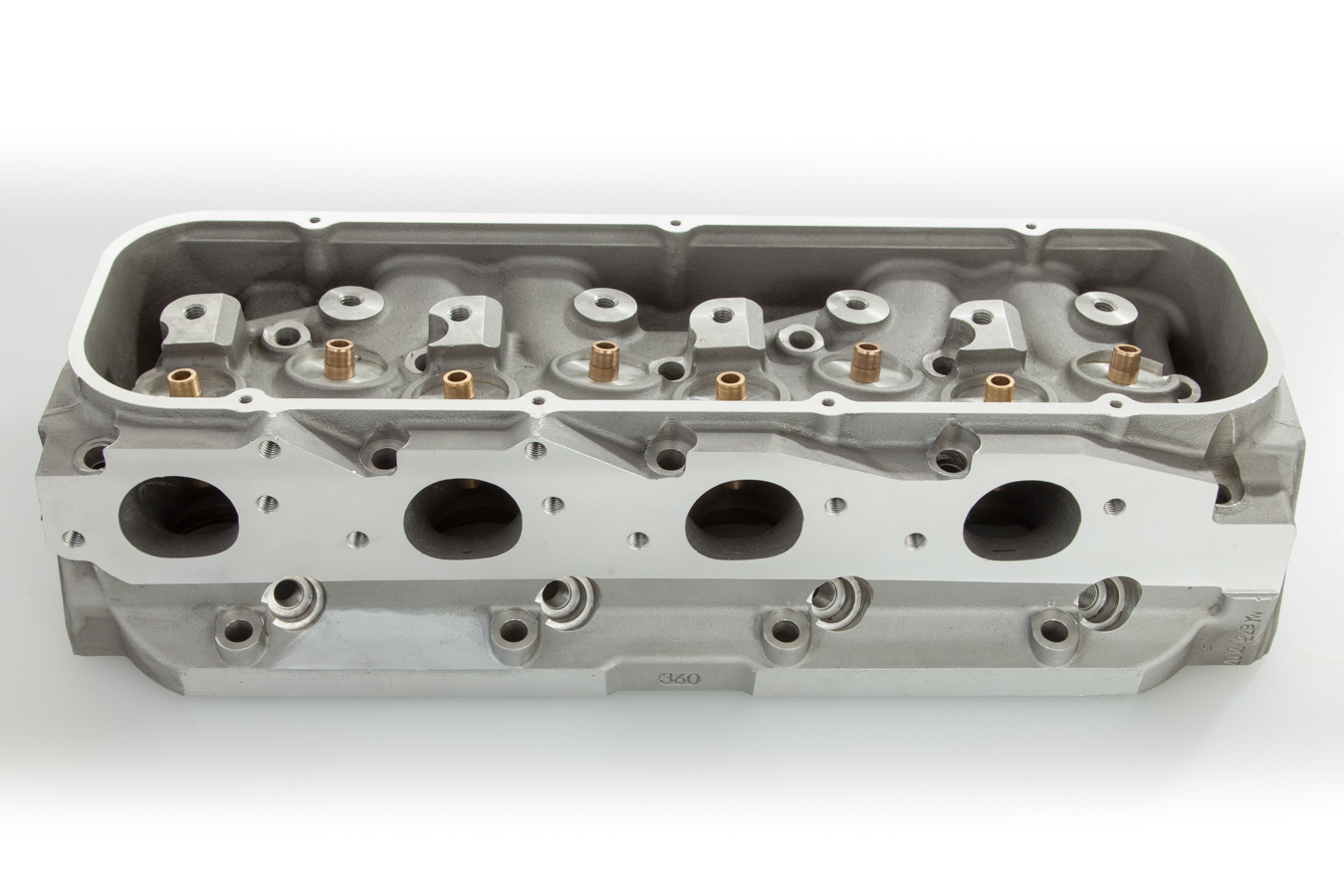

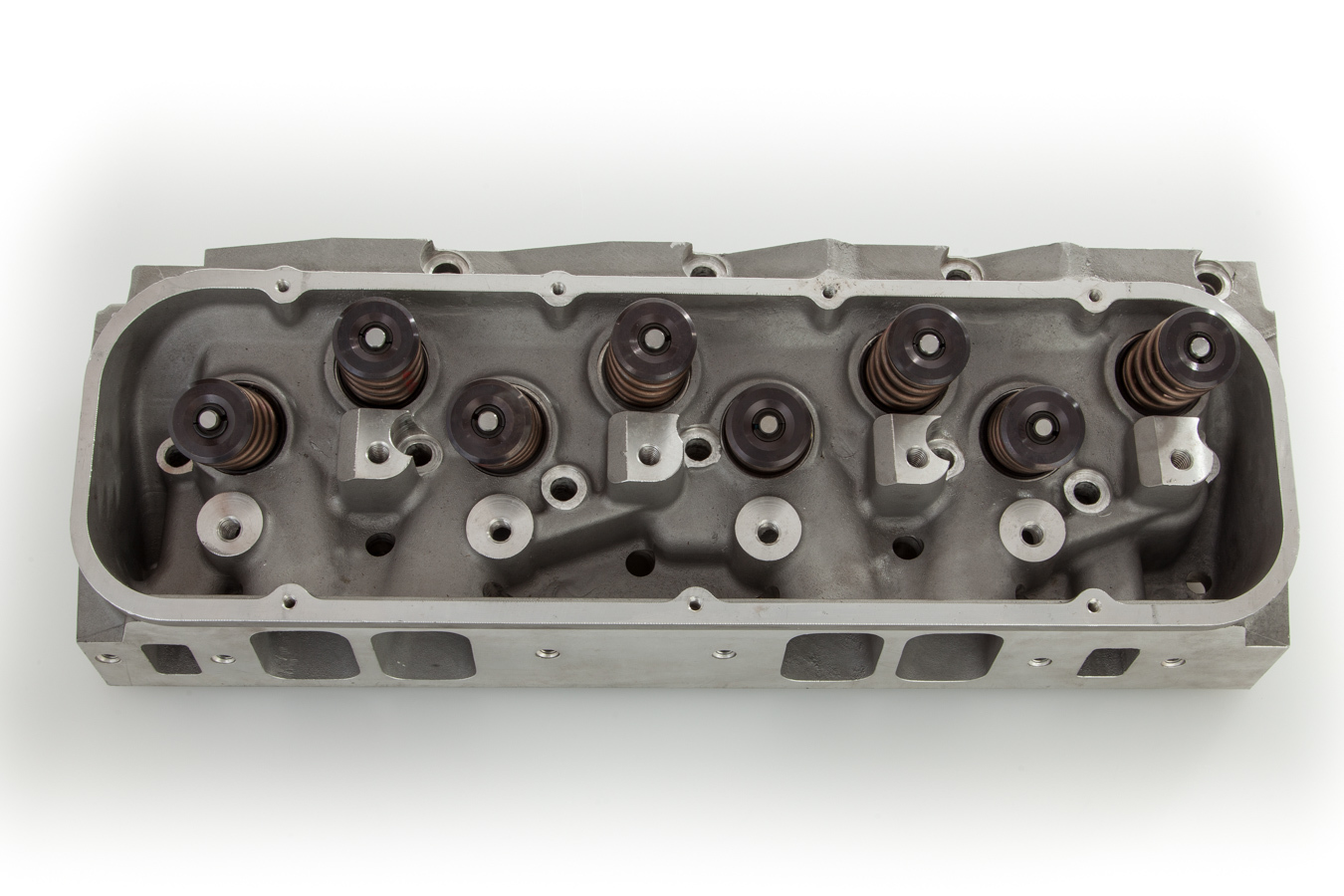

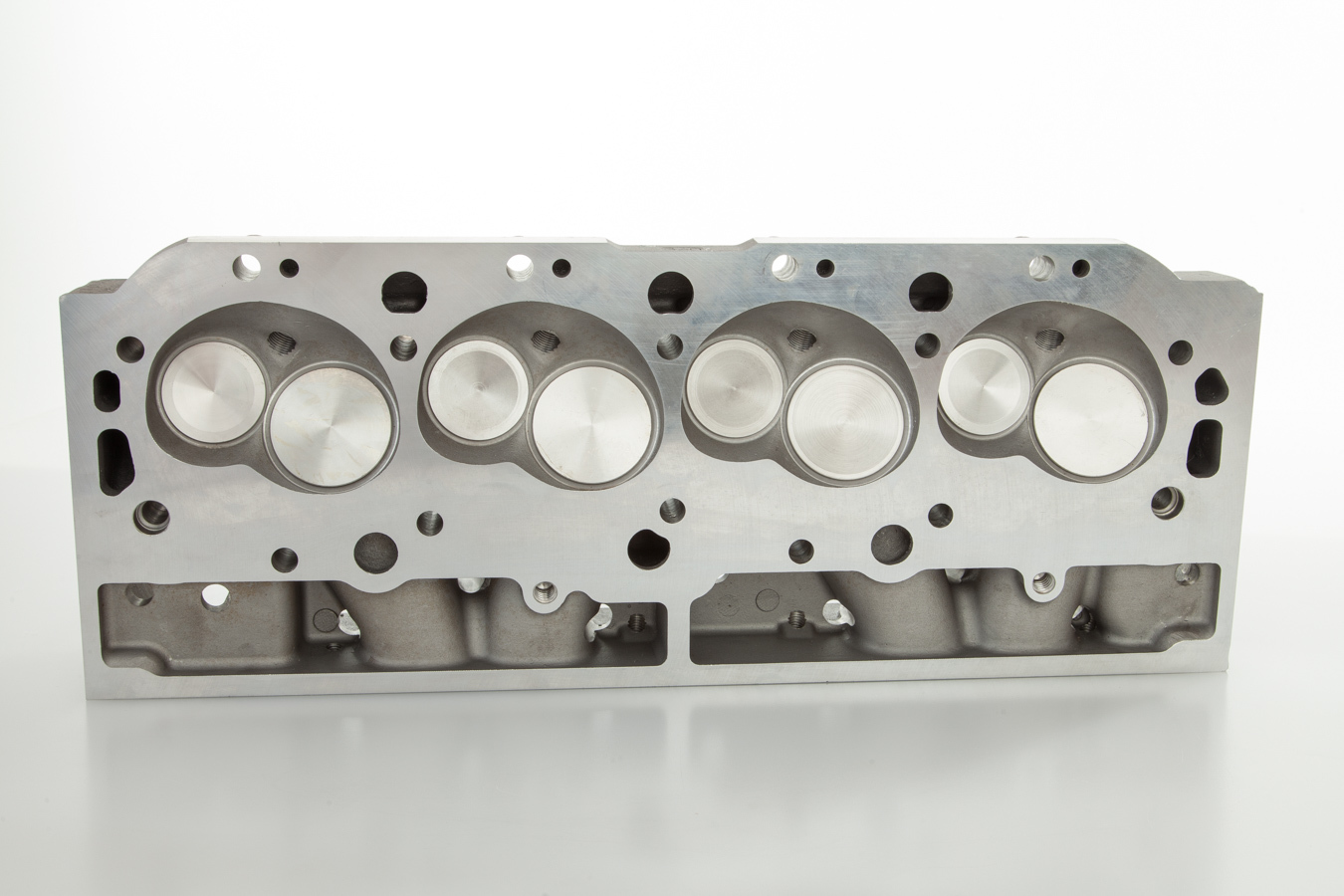

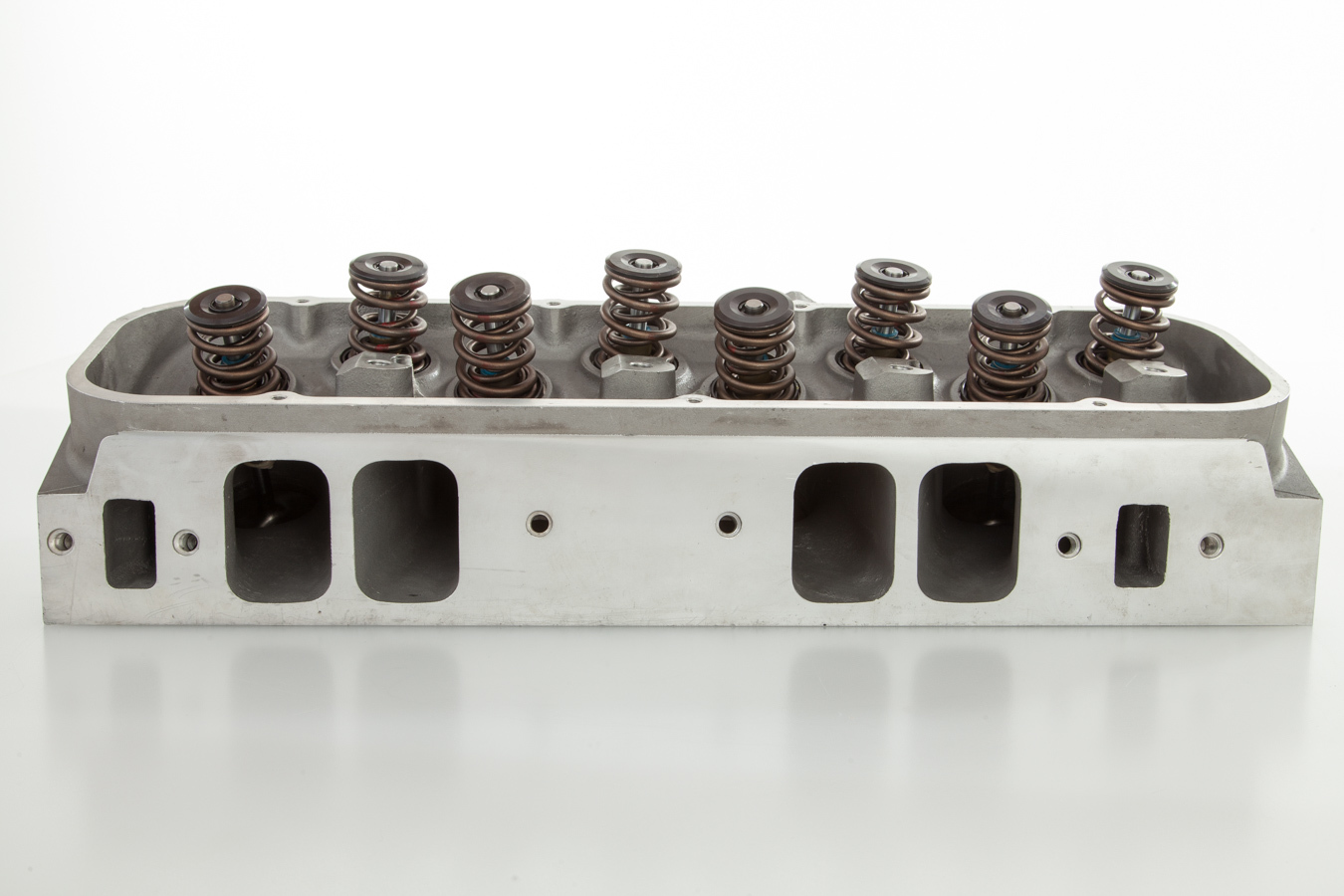

FLOTEK Performance Big Block Chevy Cylinder Heads are manufactured from cast aluminum and are designed to meet the demands of the big block Chevy enthusiast while retaining high quality at a reasonable price! Perfect for all high performance street/strip, racing, and marine applications, FLOTEK’s 360 cylinder heads for big block Chevy deliver exceptional power potential and competition level durability. Features include rectangular intake runners for strong mid-to high-rpm performance.

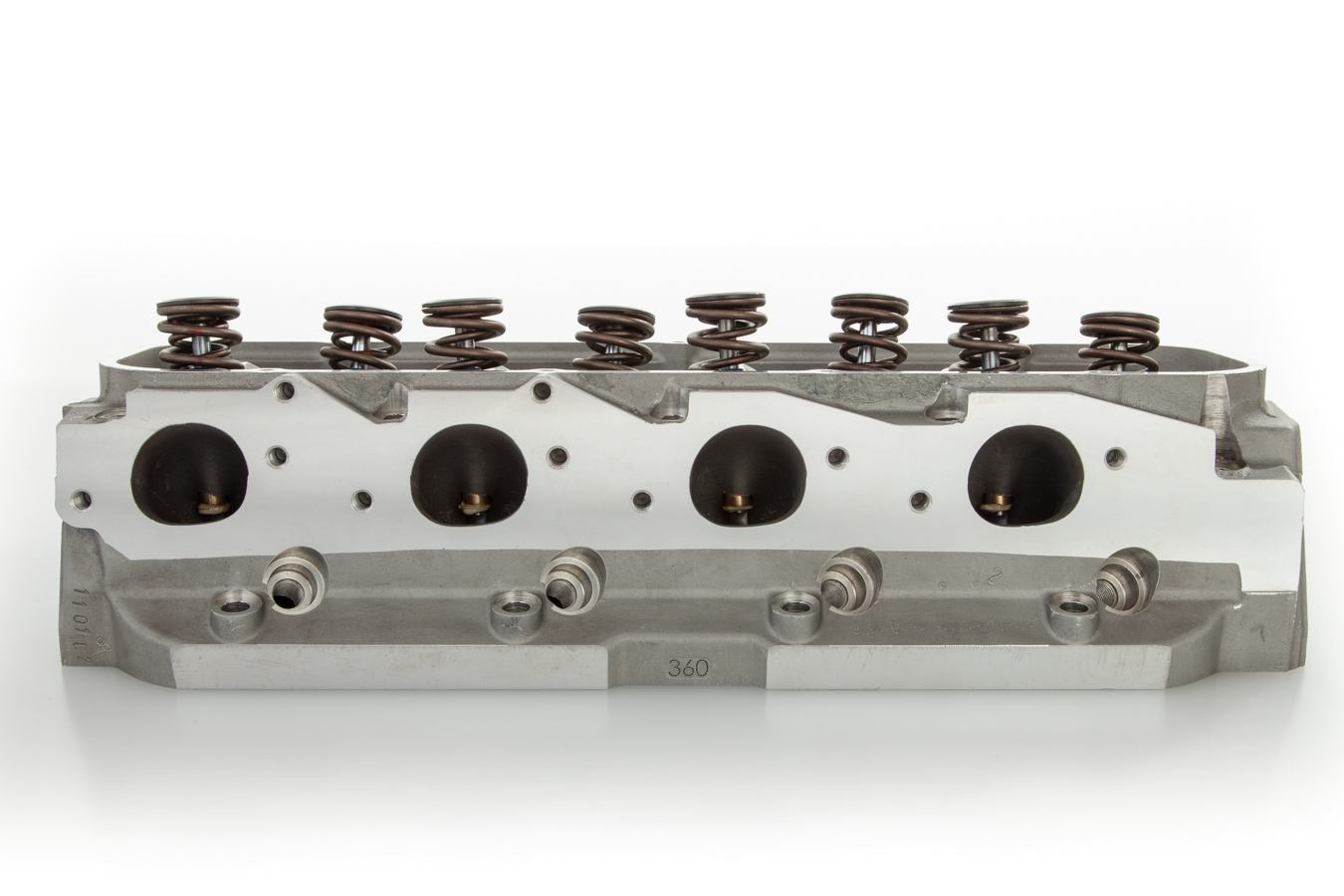

The FLOTEK BBC 360 takes stock pistons with raised valve cover. The BBC 360 Exhaust Port location is raised .500.

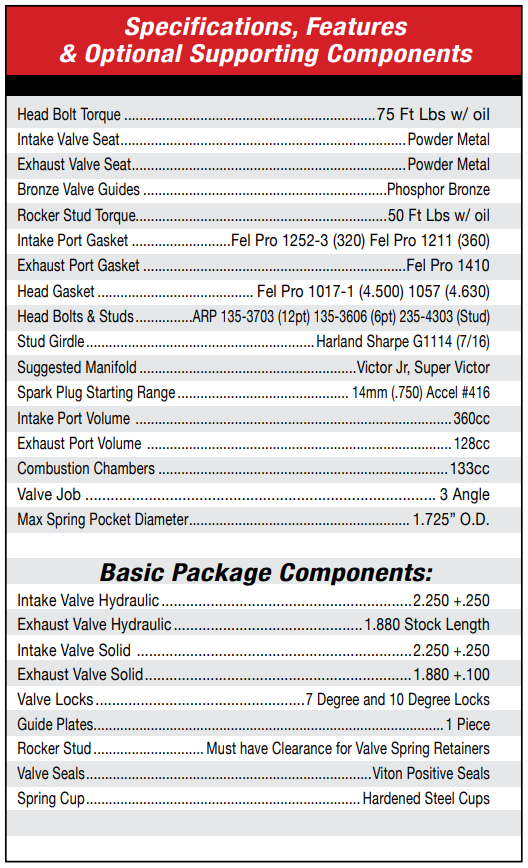

VALVE SPRINGS:

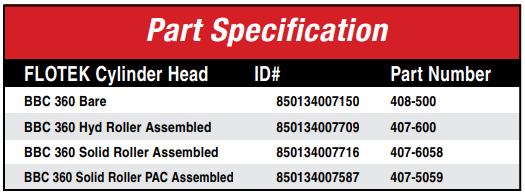

HYDRAULIC ROLLER (Part# 407-600) - PSK-236-1-7 Up to .600 Lift CL 147# @ 1.90 OP 365# @ 1.22 C/BIND 1.12 O.D 1.53” Dual W/D I.D. 1.12

SOLID ROLLER (Part# 407-6058) - PSK623-1-10 Up to .680 Lift CL 290# @ 1.90 OP 625# @ 1.30 C/BIND 1.17 O.D 1.62” Dual W/D I.D. 0.74

SOLID ROLLER (Part# 407-5059) - PAC1224 Up to .850 Lift CL 275# @ 2.00 OP 810# @ 1.150 C/BIND 1.100 O.D 1.62” Dual I.D. 0.85


PAC, MANLEY, COMP CAM SPRINGS & CUSTOM BUILDS ARE AVAILABLE UPON REQUEST.

Use Push Rod length checker to establish correct length.

  • Headers will bolt on in most applications. Some may have interference.
  • Recommendations: Hooker Super Comp Headers
  • Stock Bolt Spread
  • May be necessary to use lowered motor mounts
